I. product features:1. shell material: PC/ABS+PC, high temperature resistance 120℃, fire protection rating: ul94v-0;2. Constant voltage working mode: 5%;3. Brand IC scheme design with stable and reliable performance and low loss;4. Environmental protection conforms to RoHS 2.0;Second, the electrical characteristics:1. Input voltage/frequency: AC 100 ~ 240 V (90 ~ 264 V), 50/60Hz(47/63Hz).2. Output power: Max 24W.3. Output voltage: DC 5v ~ 24v.4. Output current: 0.1A~3A.5. Load adjustment range: 5%.6. Energy efficiency: meet V level.Withstand voltage test: AC 3000V/Min 5Ma/3S.8. Insulation impedance: DC 500 V 100 mω.

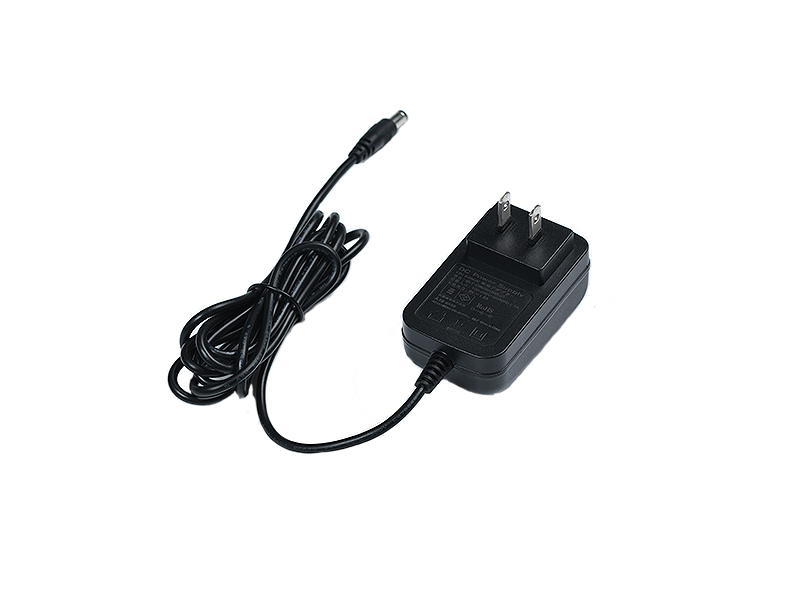

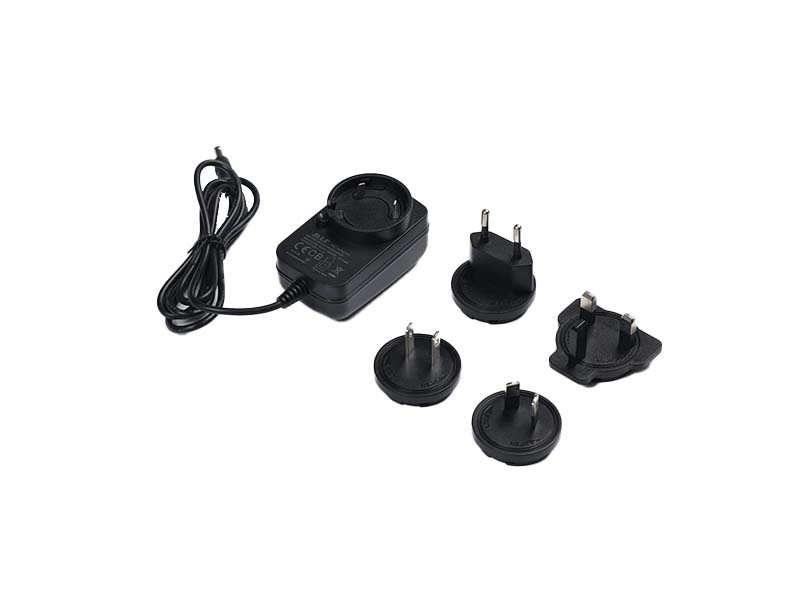

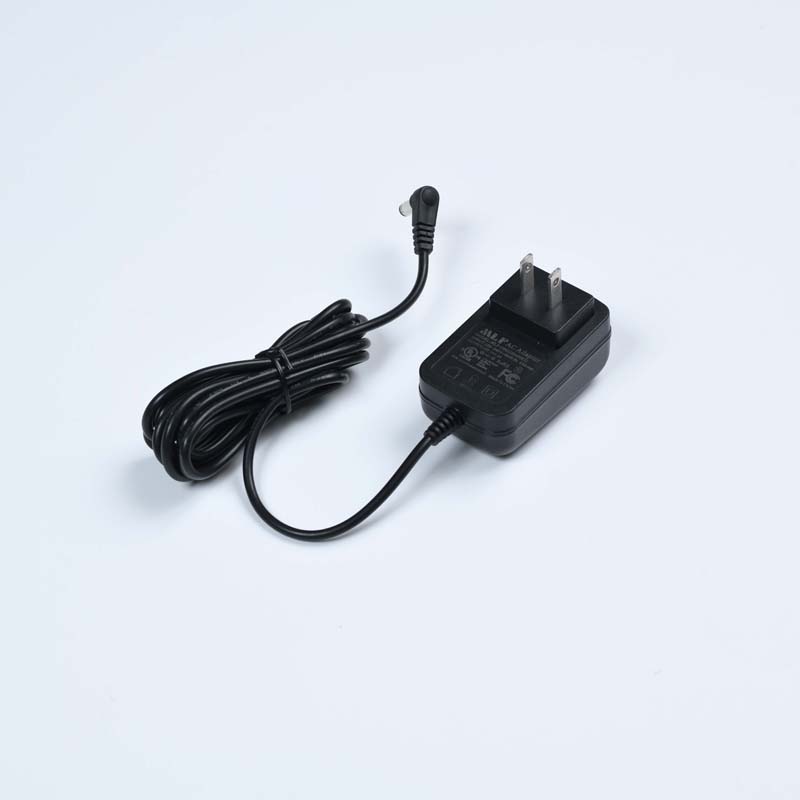

C06 - American standard power adapter	C06 - replaceable power adapter

3、 Protection function:1. Overcurrent protection: 120%2. Overvoltage protection: 120%3. Short circuit protection: automatic recovery4、 Reliability test:1. Aging test: the product shall be aged for at least 2 hours under the environment of 40 ℃± 5 ℃ and 100% rated load;2. MTBF estimation: at least 50000 hours, under 25 ℃ environment and input and full load conditions;3. Drop test: 1m high, drop onto the hardwood with thickness of 30mm, and the hardwood shall be placed on the cement base or equivalent inelastic ground;5、 Environmental requirements:1. Working temperature: 0 ~ 40 ℃2. Storage temperature: - 20 ~ 85 ℃3. Working humidity: 5 ~ 95% RH6、 Safety certification:Japanese PSE, American UL, Chinese CCC, Korean KC; Australia SAA, Europe CE, CB, GS,
